Highly Engineered HDPE Geonet and Geocomposite Drainage Liners in Chinese Design Style

Product Details

Place of Origin: Shandong, China

Brand Name: YBYG

Payment & Shipping Terms

Minimum Order Quantity: 1000 square meters

Price: $2.00/square meters >=1000 square meters

Packaging Details: Standard export package plastic bag for HDPE 3D geonet Three-dimensional Composite Drainage Network

Supply Ability: 10000 Square Meter/Square Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	More Than 5 Years	After-sale Service:	Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation	Application:	Other
Design Style:	Chinese	Product Name:	Geonets And Geocomposites
Material:	HDPE	Color:	Black
Usage:	Greening System	Function:	Heat Insulation
Certificate:	CE/ISO9001/ISO14001	Packing:	Standard Packing
Payment:	T/T	Feature:	Long Life
MOQ:	1000	Port:	Qingdao/Tianjin

Warranty:	More Than 5 Years
After-sale Service:	Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:	Other
Design Style:	Chinese
Product Name:	Geonets And Geocomposites
Material:	HDPE
Color:	Black
Usage:	Greening System
Function:	Heat Insulation
Certificate:	CE/ISO9001/ISO14001
Packing:	Standard Packing
Payment:	T/T
Feature:	Long Life
MOQ:	1000
Port:	Qingdao/Tianjin

Description

Highly Engineered HDPE Geonet and Geocomposite Drainage Liners in Chinese Design Style

Product Description

highly engineered drainage systems,geonet and geocomposite drainage liners

Drainage Net, also called Composite Geonet,

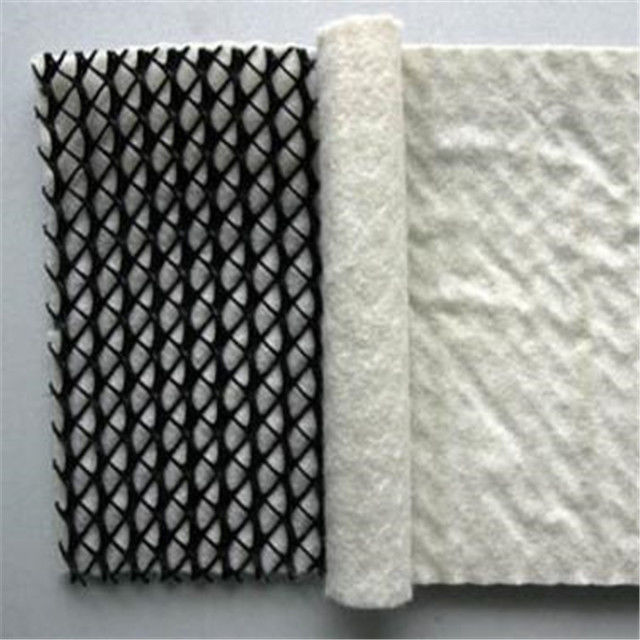

Drainage Net, also called Composite Geonet, is a two or three-layer three-dimensional drainage geosynthetic product which are often made with polypropylene PP or regenerated HDPE (geonet) and covered with double-sided thermally heat-bonded nonwoven geotextile on both sides or one side. It has excellent performance than traditional draining gravel. So it becomes a good alternative for gravel in drainage application. Our drainage net is widely used for landfill, railway system drainage, road drainage, tunnel and retaining wall.

3D composite drainage network

Composite Drainage Network is a new type of dewatering geotechnical material, which the raw material is HDPE and manufactured via particular extrusion forming technique. It has three levels, the inner fillet has strong rigidity, arrange longitudinal to form dewatering channel, the upper and bottom fillet form support to avoid geotextile inserting into dewatering channel, that means even if under high load it can also keep good dewatering property. It is the best dewatering material currently who has below function:" filter -- dewatering -- ventilate -- protect".

The geonet has high drainage performance which is made of high quality polyethylene resin, adding 2-3% carbon black, anti-UV and anti-oxidant processed by special extruding technology. The 3D composite drainage net combines the characteristics and functions of geonet and geotextile, it has the
comprehensive charateristics of anti-filtration, good drainage, air permeability and high strengthen and protection reinforcement.It is an ideal new drainage geo material.

Specification

Property	Unit	BC63/D200	BC70/D200	BC80/D200	BC90/D200	Test Standard
Hydraulic conductivity (MD)	m2/s	2.8×10-3	3.2×10-3	4.0×10-3	5 x10-3	ASTM D4716
Puncture Resistance	KN/m	0.17	0.17	0.17	0.17	ASTM D7005
Thickness	mm	6.3	7	8	9	ASTM D5199
Density	g/cm-3	0.94	0.94	0.94	0.94	ASTM D1505
Carbon Black Content	%	2	2	2	2	ASTM D1603
Tensile strength (MD)	kN/m	8	10	12	14	ASTM D7199
Hydraulic conductivity (MD)	m2/s	8	10	12	14	ASTM D4716
Unit weight	g/m2	200	200	200	200
Geotextile type	Continuous filament non-woven geotextile

Machines

Product Application

Application

1. Landfill drainage;

2. Roadbed and road drainage;

3. Railway drainage, tunnel drainage, underground structure drainage.

4.Theretaining back wall drainage,

5. Gardens and sports grounds drainage

Packing & Delivery

Packed in roll and woven bags

Company Profile

FAQ

1. who are we?
We are based in Shandong, China, start from 2016,sell to North America(40.00%),Western Europe(20.00%),South Asia(20.00%),Northern Europe(10.00%),Eastern Europe(5.00%),Africa(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,GCL Liner,3D Composite Drainage Geonet,Composite Geomembrane

4. why should you buy from us not from other suppliers?
shandong yibo yangguang engineering materials co., ltd is with more than 20 years in producing geomembrane, geotextile, compsite geomembrane, gcl l iner, etc. we expecting to cooperate with you and hope that you can visit our factory to talk more.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: 30%deposit ,the blance is before the delivery
Language Spoken:English,Chinese
